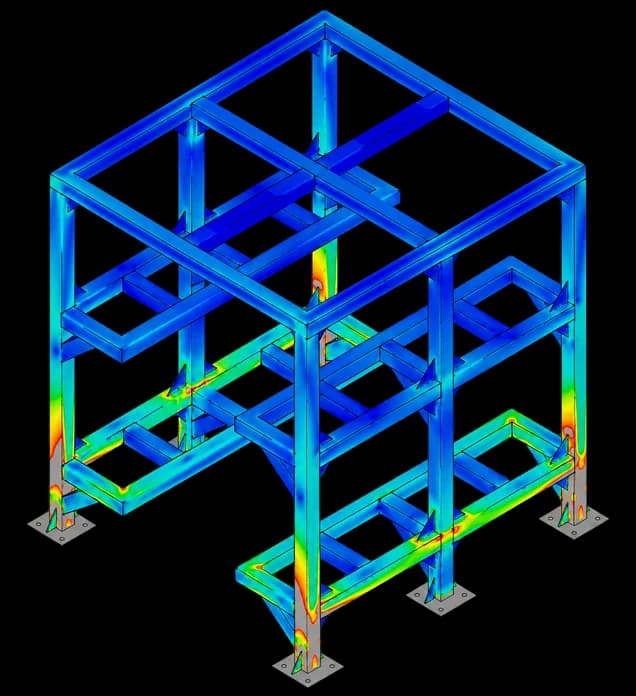

Allow for thermal expansion
Hot-box frame - Thermal Structural Analysis
Analysis Insight
Restricted thermal expansion raises stress at the supports
DESIGN RECOMMENDATION
Use Slotted mounting holes to allow thermal movement and relieve restraint
FEA Consulting and Structural Validation
Don’t let manufacturing constraints compromise your innovation. We transform complex concepts into production-ready realities through 15+ years of fabrication expertise and high-fidelity virtual validation
Simulation Driven Design
Make Better Engineering Decisions Before Manufacturing
Identify Structural Risks Early
Locate excessive stress, deformation and instability before committing to fabrication or tooling
Improve Design Performance
Refine geometry, materials and connections to balance strength, stiffness, weight and manufacturability
Focus Testing and Validation
Identify critical load cases and measurement locations to support a targeted physical test programme
Services
Our Expert FEA Consulting Capabilities
Static Structural Linear Analysis
Ensure your designs withstand real-world forces without failure

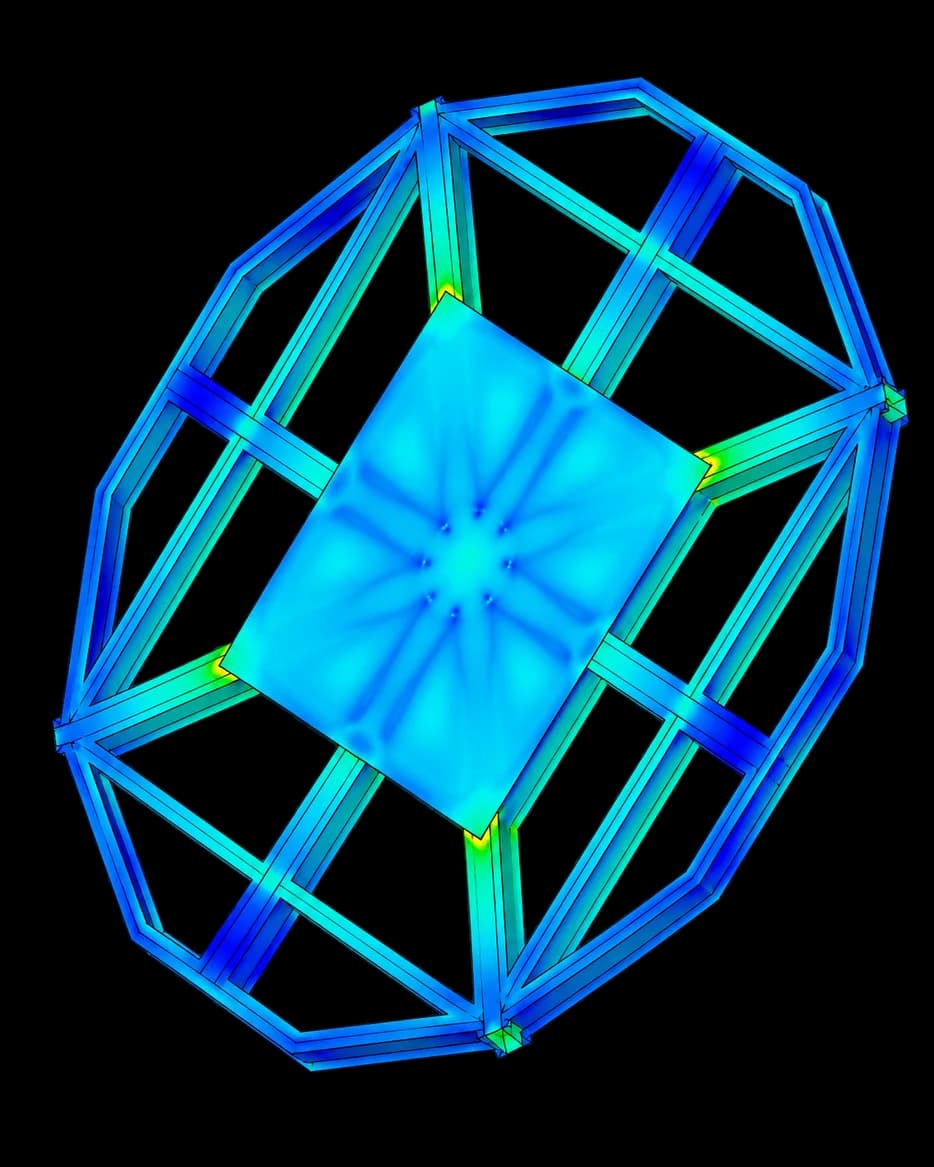

Structural Performance of Weldments
Acceleration & Inertial Loading
Component Strength and Stiffness
Lifting, Handling and Support Loads
Non-Linear Structural Analysis
Contact Non-Linearity
Material Non-Linearity
Large Deformation and Structural Stability
Preload and Assembly Sequence Effects

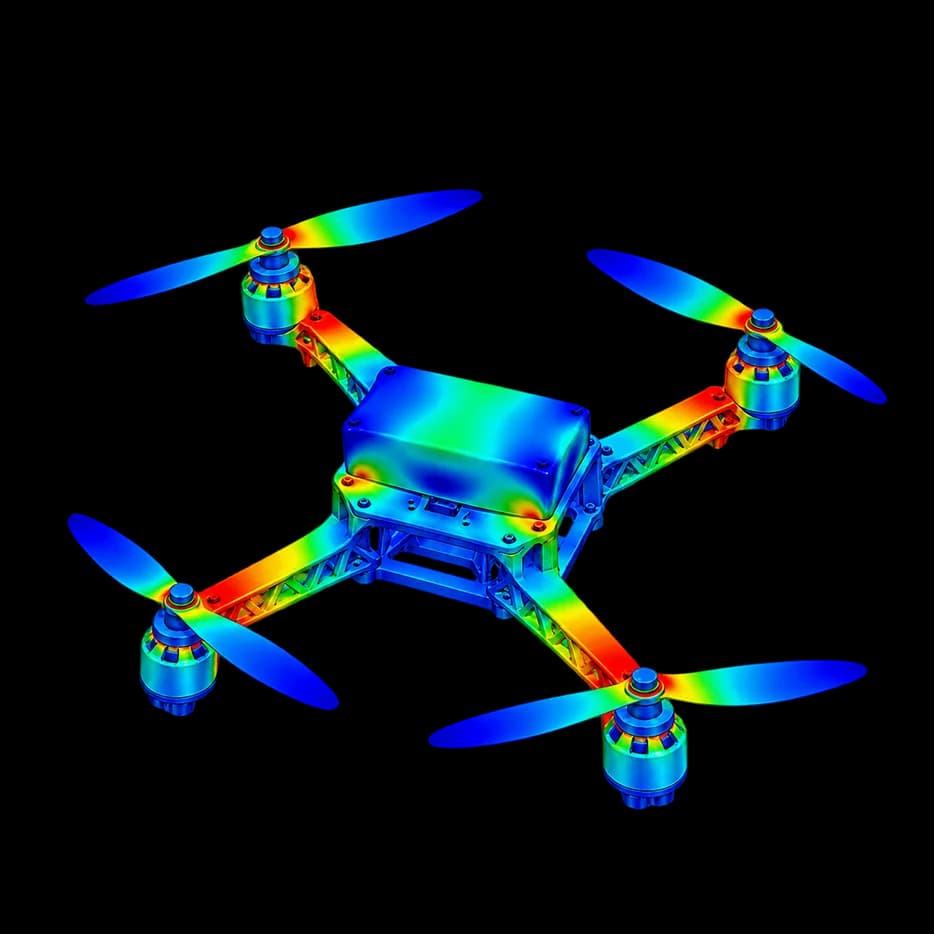

Implicit Dynamics and Vibration Analysis
Modal Analvsis
Harmonic Response Analysis
Random Vibration Analysis
Seismic Response Spectrum Analysis
Transient Shock and Time-History Analysis
Explicit Dynamics Drop, Impact and Crash
Drop Analysis

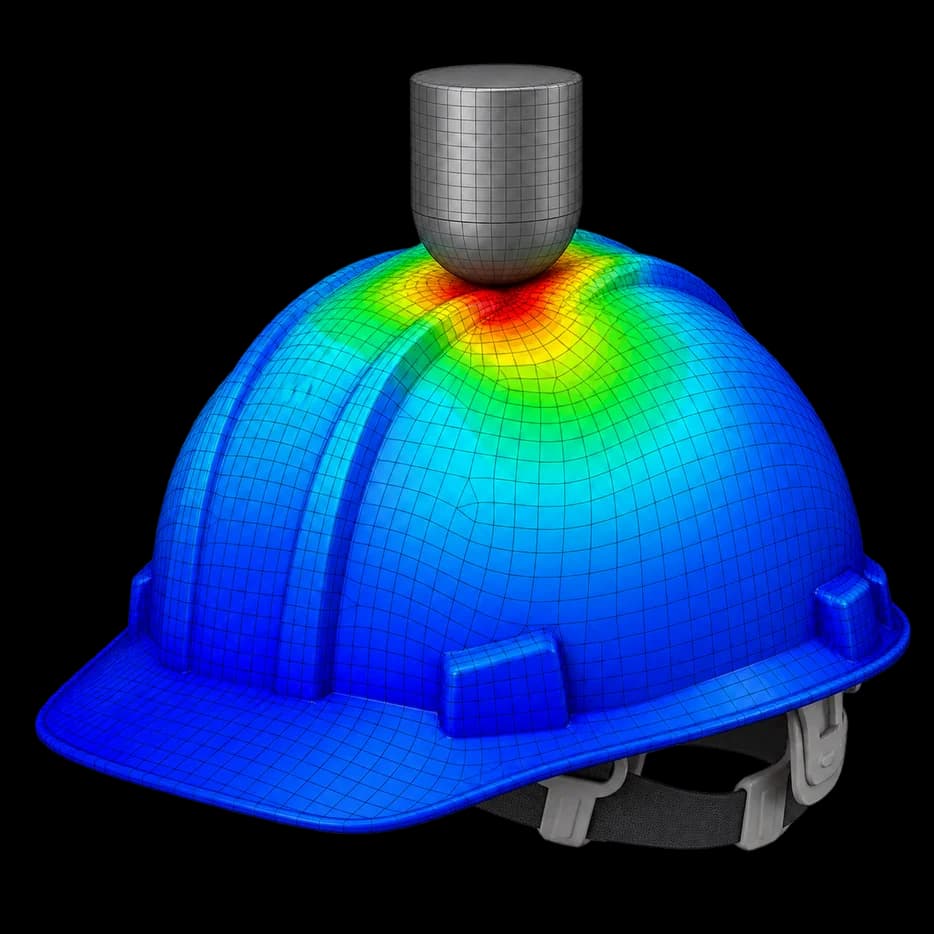

Impact Analysis
Crash and Crush Analvsis

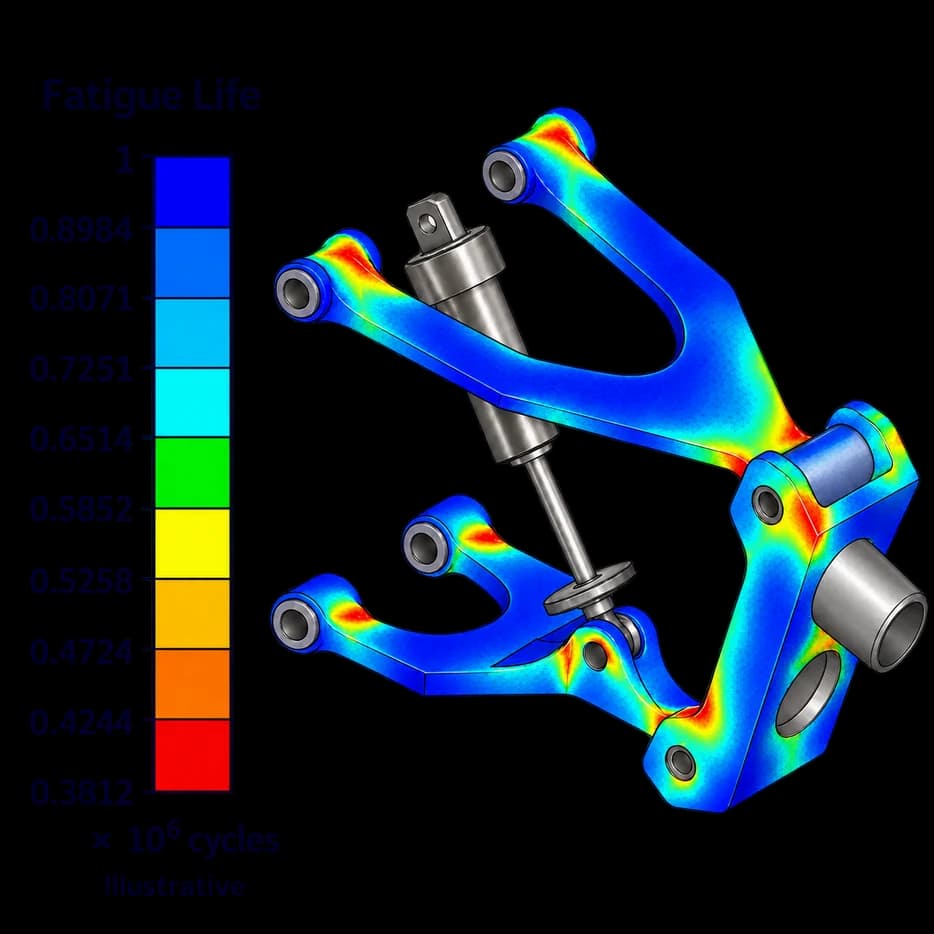

Fatigue Analysis and Durability Assessment
High-Cycle Fatigue
Low-Cycle Fatigue
Welded Joints and Variable-Amplitude Loading

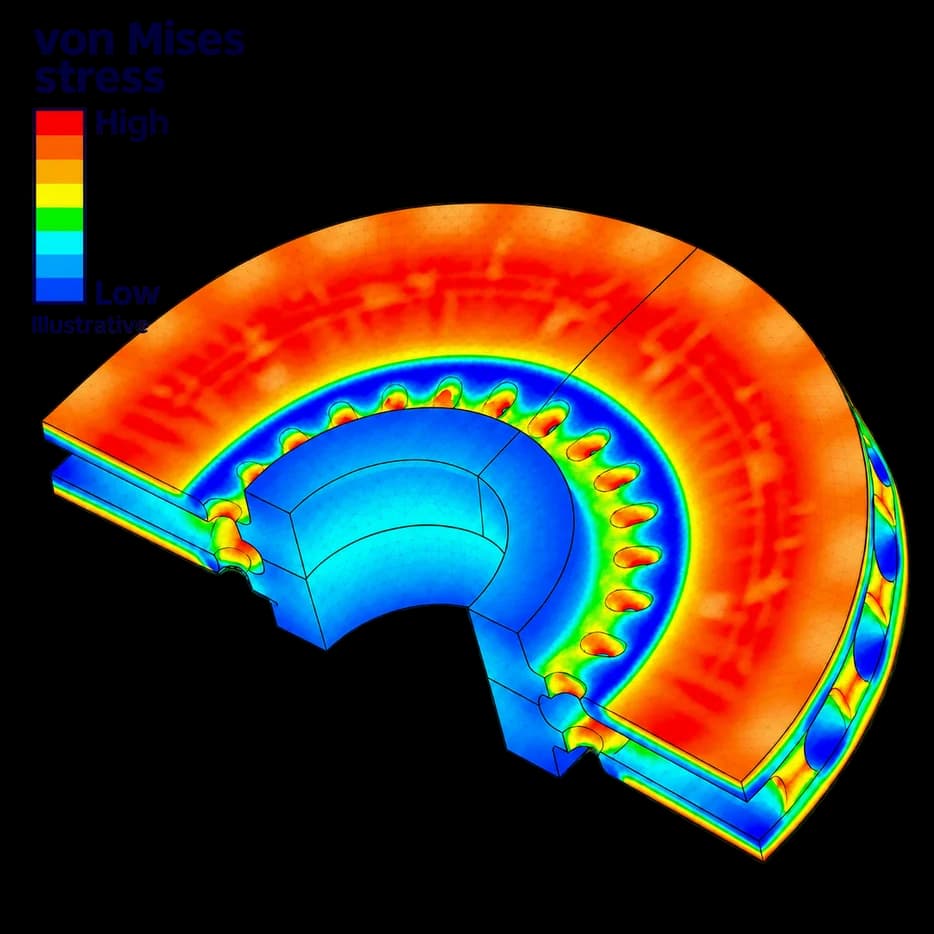

Thermal-Structural Analysis
Steady-State Thermal Stress
Transient Heating and Cooling
Differential Expansion and Combined Loading
Engineering Applications
Supporting Demanding Industrial Environments

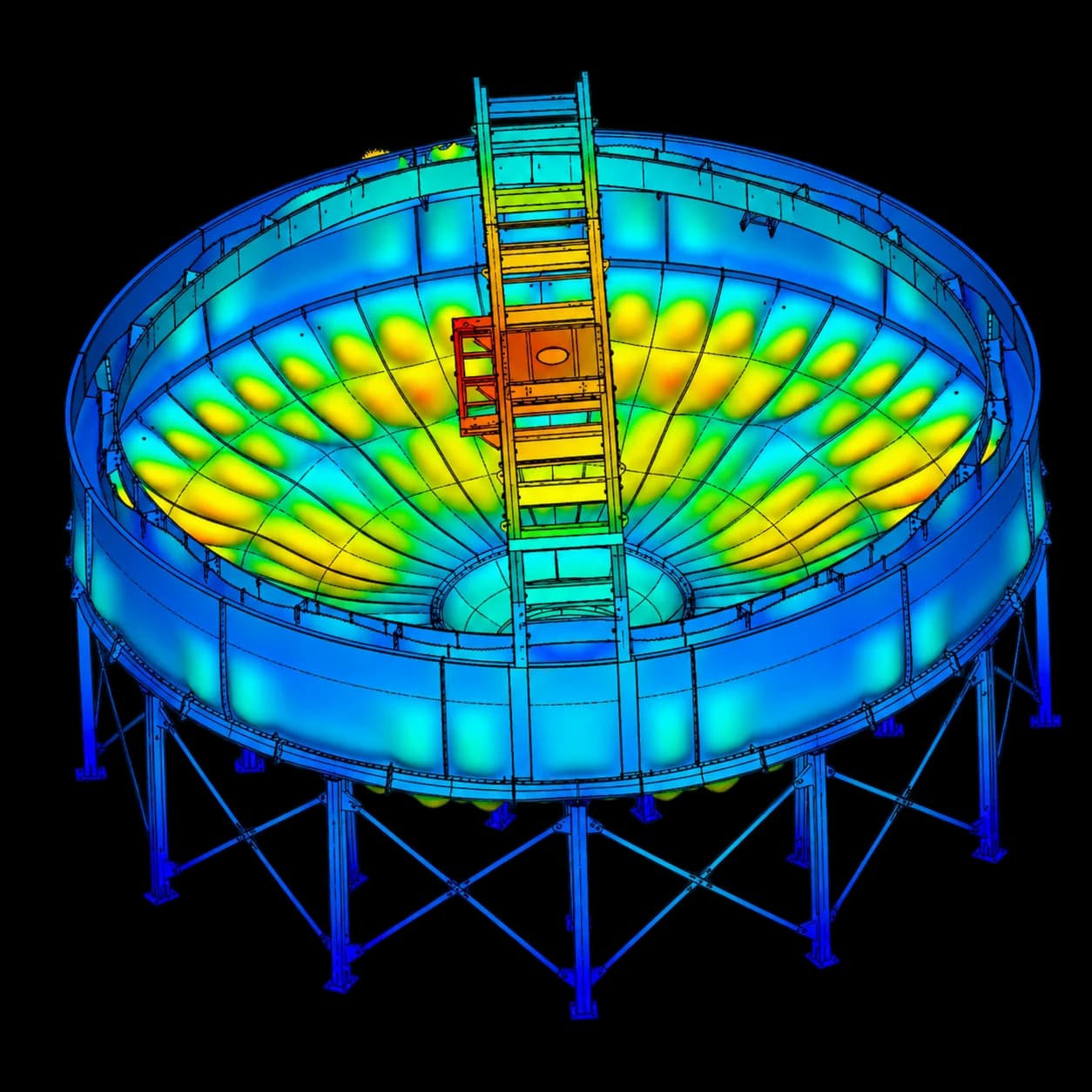

Oil & Gas
Structural and thermal assessment of process equipment, support structures and assemblies under defined operating conditions

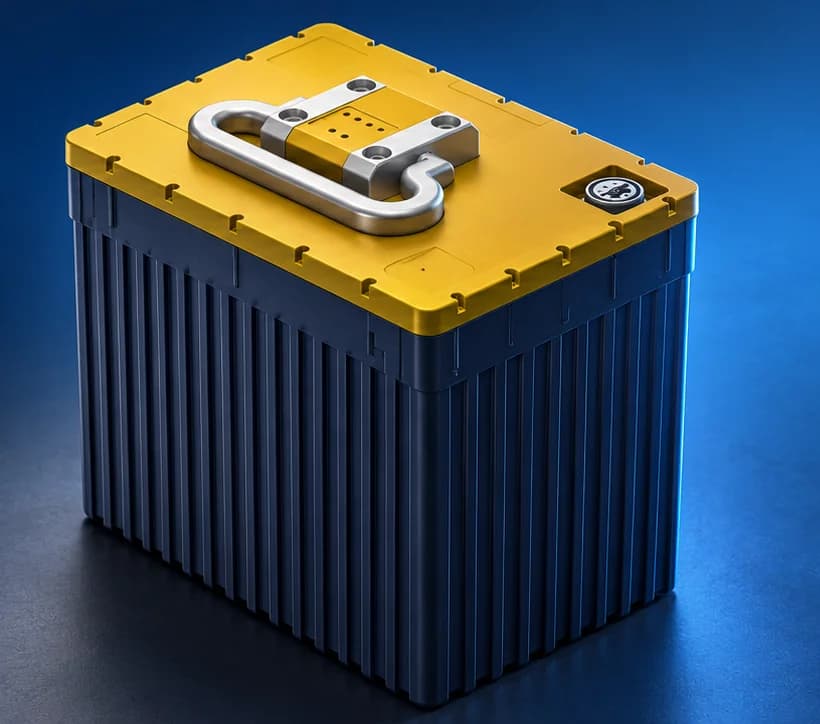

Automotive & EVs
Strength, vibration, impact and durability assessment for vehicle components, mounts and equipment assemblies
Industrial Machinery
Structural assessment of fabricated machinery, lifting arrangements, equipment skids and load bearing components
From Requirements to Recommendations
A clear assessment process connects the model, the results and the engineering decisions that follow.
Speak With an Engineering SpecialistOur Analysis Process
Define the assessment
Eetahlich anoratim dilane law asee motoral information and sepontand artori
Build the Analysis Model
Prenare anomatry select suitable elamante and renresent connections sunsorts and loade
Check the Model and Solution
Review assumptions, mesh sensitivity, convergence and relevant numeric checks
Interpret the Results
Identify critical locations and explain their significance for structural performance and function
Evaluate Improvements
Compare agreed alternatives and document recommendations, assumptions and assessment limits
Engineering Insight You Can Use
Manufacturing-Aware Recommendations
Connect simulation findings with practical changes to fabrication, assembly, material selection and geometry
Clear Technical Reporting
Understand the engineering problem, modelling approach, critical results and the design decisions supported by the assessment
Deliverables Defined Around Your Needs
Depending on scope, receive an analysis report, annotated result plots, load-case comparisons and recommendations for design refinement or testing
Ready to Assess Your Design?
Share your CAD model, material details, operating loads and engineering questions you need to resolve. Our team will help define an analysis approach sulted to your design stage and valldation objectives.
